STA13 B0.36/8 2N36 L伺服馬達(BERGER LAHR)(Schneider)
此型號為意大利BALTUR/百得燃燒器專用

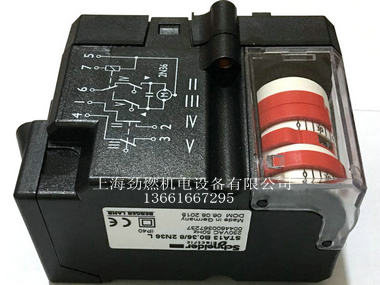

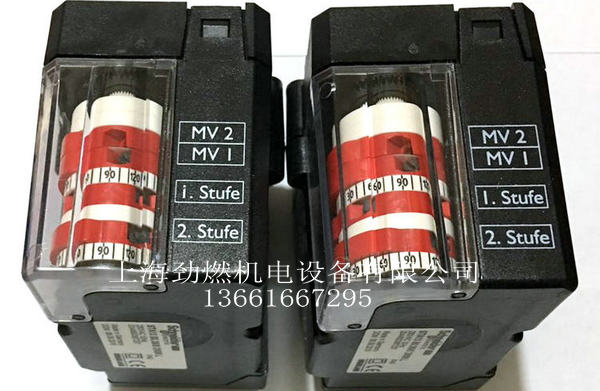

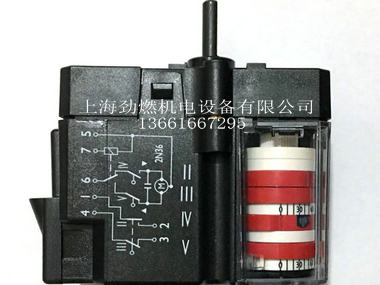

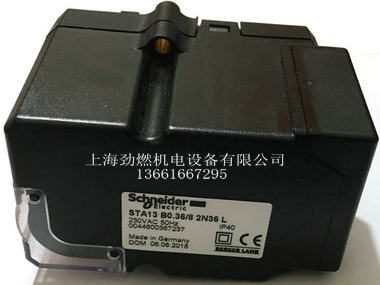

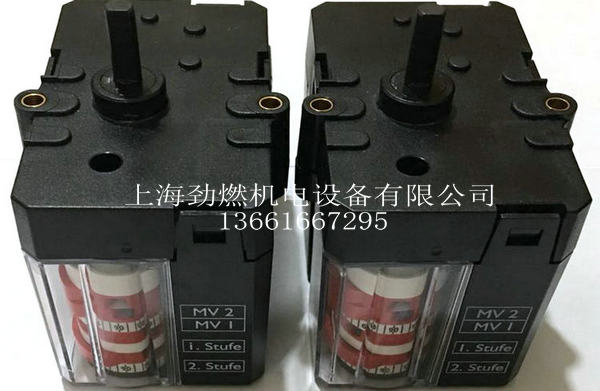

STA13 B0.36/8 2N36 L伺服馬達/風門執行器
品牌:BERHER LAHR(百格拉)/ Schneider(施耐德)
產地:德國
*BerherLahr公司已經被Scheider公司并購,現為施耐德公司旗下品牌!
此型號伺服馬達專用于意大利BALTUR/百得燃燒器上
產品描述 |
Berher Lahr品牌伺服馬達分為STM, STA, STE三個系列。他們可以用于精確控制風門、閥門等的開度。在緊湊型的伺服馬達內部有馬達、齒輪組、控制單元組成。
伺服馬達STE系列由模擬信號 (電流或電壓) 進行控制。可通過模擬信號設置軸的旋轉角度。操作范圍,可以自由地在0和90°之間的定義。在界定的工作范圍內,可以選擇任何的旋轉角度。根據版本,設定值可以設置作為一個從0到10V的電壓信號或從4至20毫安的電流信號。運行范圍的限制也可以由兩個極限開關得到保障。新STE數字式已經上市,供電電壓為24V。
STA系列伺服馬達可以有3個、4個或者5個凸輪。其中兩個凸輪用于設置最大和最小限制位置,其他的凸輪用于控制外部設備。這些凸輪都是連續可調的。STA系列伺服馬達還可有1或2個繼電器。通過這些繼電器控制開關控制馬達。STA執行器通常用于控制燃氣和燃油燃燒器的風門控制。多樣的接線方式可以和不同的標準燃燒器連接。STA系列執行器提供順時針或者逆時針旋轉方向的型號。
STM系列伺服馬達的構造和STA系列相同。他們的區別只在于有無繼電器。STM也同樣有順時針或者逆時針型號提供。
You can use the actuators from Berger Lahr to position flaps, valves or slides with great precision. Inside the compact servo drive housing there is a motor, a gearbox and a control unit. There is a choice of three actuator types to solve your positioning problems: STM, STA and STE.
Actuators of type STE are controlled by analogue signals (current or voltage). The angle of rotation of the shaft can be set via analogue signals. The operating range can be freely defined between 0 and 90×. Any angle of rotation can be selected within the defined operating range. Depending on the version, the setpoint can be set as a voltage from 0 to 10 V or as a current from 4 to 20 mA. The limits of the operating range can also be safeguarded by two limit switches.
Actuators of type STA are available with 3, 4 or 5 cams. Two cams serve to define the limits, and the others are available for controlling external devices. The cams are continuously adjustable. Actuators of type STA are also fitted with 1 or 2 relays. Switching actions for controlling the motor are controlled via these relays. STA actuators are used to move air flaps in oil and gas burners.
Various wiring arrangements are available for connecting to standard burners. Actuators of type STA can be supplied to run clockwise or anti-clockwise.
Actuators of type STM are constructed in the same way as actuators of type STA. They differ in having no relays.
Actuators of type STM are available in clockwise and anti-clockwise versions.
型號解析 |
例如 | STA13 B0.36/8 2N36 L |
|
|
產品類別:伺服馬達(執行器) | |
|
|
執行器類型 | STA13 B0.36/8 2N36 L |
STE:電子式執行器 | |
STA:執行器帶凸輪盤和繼電器 | |
STM:執行器帶凸輪盤 | |
|
|
90°運行時間 | STA13B0.36/8 2N36 L |
例如:13代表運行90°所需時間為13秒 | |
|
|
尺寸和箱體 | STA13B0.36/8 2N36 L |
B0,B1,B2,B3,Q3 | |
|
|
馬達型號 | STA13 B0.36/82N36 L |
RSM36/8,RSM36/12,RSM37/6MRSM41/6,RSM42/6,RSM51/6 | |
|
|
運行程序和接線 | STA13 B0.36/82N36L |
例如2N36: | |
2:功能盤數量 | |
N:盤 | |
36:電路圖 | |
|
|
旋轉方向 | STA13 B0.36/8 2N36L |
R:右 | |
L:左 | |
|
|
電位計安裝 | STA13 B0.36/8 2N36 L |
P:預備安裝電位計 | |
POT:完全安裝電位計 | |
沒有:不裝電位計 |
