E6G*S10*1/2*GMO 布拉瑪BRAHMA燃氣電磁閥

E6G*S10*1/2*GMO布拉瑪BRAHMA燃氣電磁閥

產品介紹

品牌:BRAHMA,布拉馬                            型號:E6G*S10*1/2*GMO 材質:鑄鋁
類型(通道位置):直通式 連接形式:內螺紋 公稱通徑:15(mm)
適用介質:燃氣 天然氣 液化氣 煤氣 流動方向:單向 零部件及配件:線圈
用途:截止 形態:柱塞式 壓力環境:小于500mbar
工作溫度:常溫 標準:國標                                規格:E6G*S10*1/2*GMO



E6G系列燃氣電磁閥

品牌:Brahma(布拉瑪)

產地:意大利

產品介紹

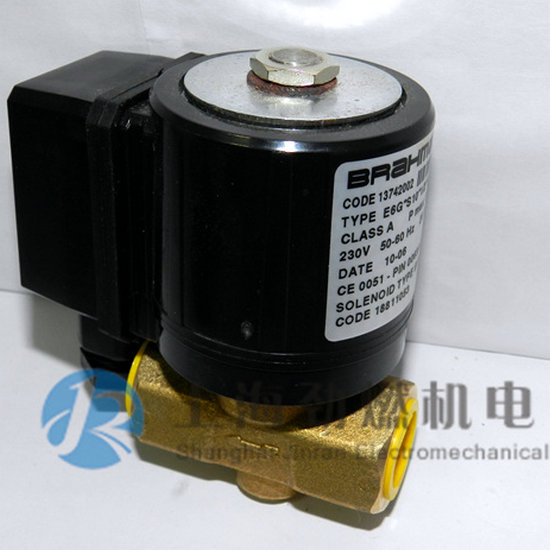

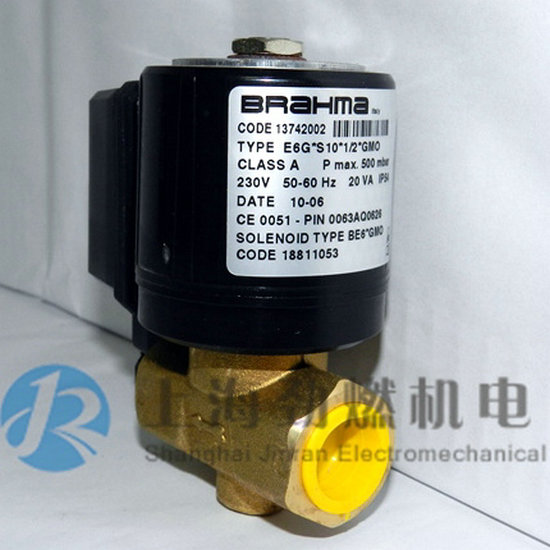

E6G*S10*1/2*GMO 為意大利BRAHMA公司出品的燃氣電磁閥

口徑:1/2"

開啟速度:快開快關

流量調節:不帶流量調節

用途:安全電磁閥、緊急切斷閥、截止閥等

This series of solenoid valves are of normally closed type, suitable for civil and industrial applications, supplied with alternate or direct current. These valves are divided into two groups: with 8mm or 10mm orifice. Gas valves, marked with “S” or “L” after type reference, have coil operating in direct current, which permitted to make its actions as silent as possible. There is the possibility to have valves provided with inlet pressure plug or outlet pressure plug (excluding G1/4” connection ones) and, 10mm orifice only, valves equipped with hydraulic lag group, which permits slow opening; in this case it is also possible to have a quick and adjustable opening initial flow. Gas valves of this series, conforming to EN161, have a CE type Certificate (CE Reg. N° 63AQ0626) in accordance to European Directives 90/396 and 93/68.

型號表
型號 運行壓力 口徑 重量 線圈型號 功率(VA)在230V 功率(VA)在110V 流量(m3/h)2.5mbar
E6G*S10 0...500 G3/8" 760 BE6*GMO 20 18 3.9
E6G*S10 0...500 G1/2" 730 BE6*GMO 20 18 3.9
E6G*S10 0...500 G3/8" 740 BE6*CFD 20 18 3.9
E6G*S10 0...500 G1/2" 710 BE6*CFD 20 18 3.9
E6G*SR10 0...500 G3/8" 765 BE6*GMO 20 18 3.9
E6G*SR10 0...500 G1/2" 735 BE6*GMO 20 18 3.9
E6G*SR10 0...500 G3/8" 745 BE6*CFD 20 18 3.9
E6G*SR10 0...500 G1/2" 715 BE6*CFD 20 18 3.9
E6G*L 0...200 G3/8" 865 BE6*GMO 20 18 3.9
E6G*L 0...200 G1/2" 835 BE6*GMO 20 18 3.9
E6G*S8 0...200 G1/4" 620 BE6*GMOC 20 18 2
E6G*S8 0...200 G3/8" 725 BE6*GMOC 20 18 2
E6G*S8 0...200 G1/2" 695 BE6*GMOC 20 18 2
E6G*S8 0...1000 G1/4" 640 BE6*GMO 20 18 2
E6G*S8 0...1000 G3/8" 745 BE6*GMO 20 18 2
E6G*S8 0...1000 G1/2" 715 BE6*GMO 20 18 2
E6G*S8 0...1000 G1/4" 620 BE6*CFD 20 18 2
E6G*S8 0...1000 G3/8" 725 BE6*CFD 20 18 2
E6G*S8 0...1000 G1/2" 695 BE6*CFD 20 18 2
E6G*SR8 0...200 G1/4" 625 BE6*GMOC 20 18 2
E6G*SR8 0...200 G3/8" 730 BE6*GMOC 20 18 2
E6G*SR8 0...200 G1/2" 700 BE6*GMOC 20 18 2
E6G*SR8 0...1000 G1/4" 645 BE6*GMO 20 18 2
E6G*SR8 0...1000 G3/8" 750 BE6*GMO 20 18 2
E6G*SR8 0...1000 G1/2" 720 BE6*GMO 20 18 2
E6G*SR8 0...1000 G1/4" 625 BE6*CFD 20 18 2
E6G*SR8 0...1000 G3/8" 730 BE6*CFD 20 18 2
E6G*SR8 0...1000 G1/2" 700 BE6*CFD 20 18 2
E6G*A10 0...950 G3/8" 675 BE6*A3C 20 18 3.9
E6G*A10 0...950 G1/2" 645 BE6*A3C 20 18 3.9
E6G*A10 0...950 G3/8" 695 BE6*AFD 20 18 3.9
E6G*A10 0...950 G1/2" 665 BE6*AFD 20 18 3.9
技術參數
主電壓 230V 50/60Hz
110V 50/60Hz
運行溫度 -10ºC...+60ºC
關閉時間 <1s
打開時間 <1s
安裝位置 水平或垂直
材料
等級 A
