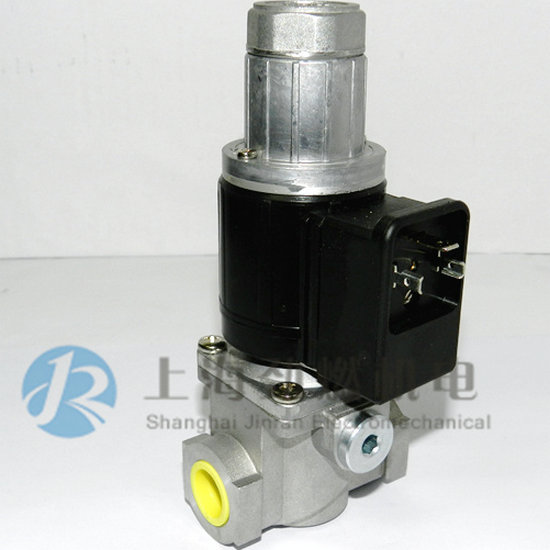

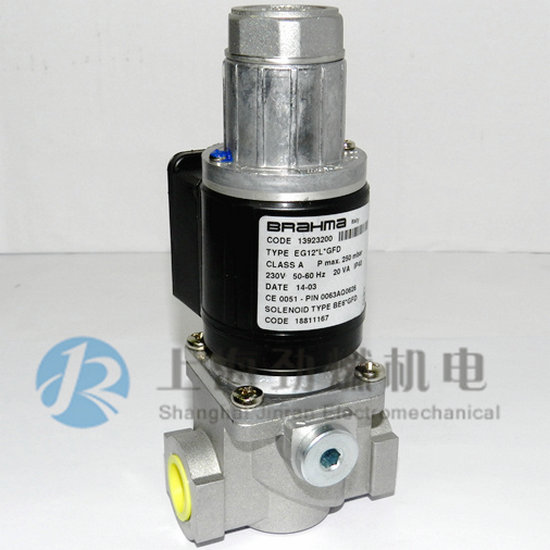

EG12*L*GFD 布拉瑪(BRAHMA)燃?xì)怆姶砰y

EG12*L*GFD 布拉瑪(BRAHMA)燃?xì)怆姶砰y

產品介紹

EG12系列燃?xì)怆姶砰y

品牌:Brahma(布拉瑪)

產地:意大利

產品介紹

EG12*L*GFD燃?xì)怆姶砰y為慢開,帶流量調節,口徑1/2"。流量調節位置在頂部。

型號解析

EG12代表型號

L代表:A->快速打開;S->快速安靜打開;L->慢速安靜打開

G代表:A->交流電供電;C->直流電供電;G->交流電供電,但是線圈是直流電工作

FD代表:FD->電源連接方式使用專用插頭(電氣保護等級IP65);MO->電源連接方式為接線盒內接線柱連接(電氣保護等級為IP40)

This series of solenoid gas valves are of normally closed type, suitable for civil and industrial applications, supplied with alternate or direct current and inclusive of a wire-net filter on the inlet to avoid the entrance of dirt of > 1mm. Gas valves marked with “S” or “L” after reference type have direct current supplied coil, which permitted to make actions as silent as possible.

There is the possibility to have a fast opening or a slow opening valve (obtained by special hydraulic shock-obsorber), with flow adjustment and fast opening initial flow adjustment and inlet pressure plugs (all of them) or outlet plugs (excluding those with flow adjustment).

Gas valves of this series, conforming to EN161, have a CE type Certificate (CE Reg. N° 63AQ0626) in accordance to European Directives 90/396 and 93/68.

型號表
型號 運行壓力 口徑 重量 線圈型號 功率(VA)在230V 功率(VA)在110V 流量(m3/h)2.5mbar
EG12*A 0...500 G1/2" 734 BE6*A3C 20 18 7.5
EG12*A 0...500 G1/2" 764 BE6*AFP 20 18 7.5
EG12*A 0...500 G1/2" 766 BE6*AFD 20 18 7.5
EG12*AR 0...500 G1/2" 752 BE6*A3C 20 18 7.5
EG12*AR 0...500 G1/2" 782 BE6*AFP 20 18 7.5
EG12*AR 0...500 G1/2" 784 BE6*AFD 20 18 7.5
EG12*S 0...500 G1/2" 780 BE6*C3C 20 18 7.5
EG12*S 0...500 G1/2" 810 BE6*CFP 20 18 7.5
EG12*S 0...500 G1/2" 812 BE6*CFD 20 18 7.5
EG12*S 0...500 G1/2" 832 BE6*GMO 20 18 7.5
EG12*SR 0...500 G1/2" 800 BE6*C3C 20 18 7.5
EG12*SR 0...500 G1/2" 830 BE6*CFP 20 18 7.5
EG12*SR 0...500 G1/2" 832 BE6*CFD 20 18 7.5
EG12*SR 0...500 G1/2" 851 BE6*GMO 20 18 7.5
EG12*L 0...250 G1/2" 935 BE6*GMO 20 18 7.5
技術參數
主電壓 230V 50/60Hz
110V 50/60Hz
運行溫度 -10ºC...+60ºC
關閉時間 <1s
打開時間 <1s
安裝位置 水平或垂直
材料
等級 A
