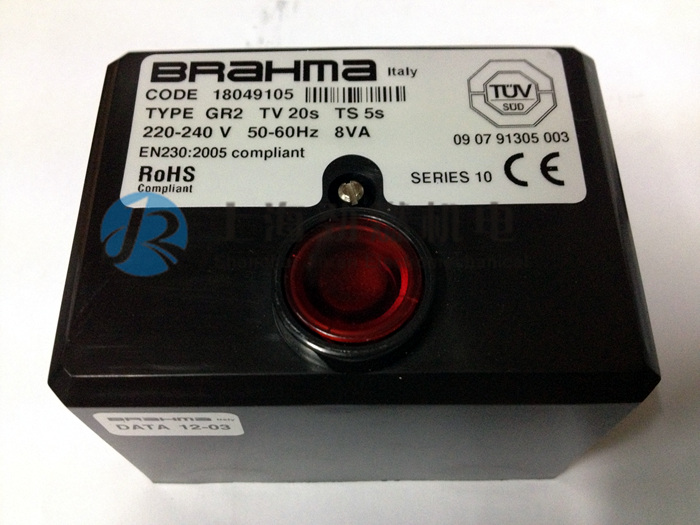

GR2型號程控器多用于意大利BALTUR百得品牌的燃油燃燒器上。包括SPARK26DSG,SPARK30DSG,SPARK35DSG,BT40G等。
替代原有OR3/B使用
|
OR3系列燃油燃燒器控制器
品牌：Brahma（布拉瑪）
產地：意大利
|
|
產品介紹 |
|
This range of electronic oil burner controls has been specifically designed for oil burners for non permanent operation.
The automatic burner controls of this series are suitable for:
-
monobloc oil burners
-
warm air generators
-
steam boilers
-
power washers
-
kilns
Due to the technical and structural characteristics and to the variety of models they can be used for the automation of cookers and oil burner operated appliances for domestic and industrial applications.
|
|
型號表 |
|
型號 |
單段火 |
雙段火 |
預熱器 |
燃油量<30kg/h |
燃油量>30kg/h |
預點火 |
鎖定燈 |
遠程復位 |
火焰探測FC7/FC8 |
火焰探測FC11/FC13 |
按鈕復位 |
|
G22 |
* |
|
* |
* |
|
* |
* |
|
* |
|
* |
|
G22/A |
* |
|
* |
* |
|
|
|
|
* |
|
* |
|
GF2 |
|
* |
|
* |
|
* |
* |
|
* |
|
* |
|
GF2/A |
|
* |
|
* |
|
|
* |
|
* |
|
* |
|
GF3 |
|
* |
|
|
* |
* |
* |
|
* |
|
* |
|
GF3/A |
|
* |
|
|
* |
|
* |
|
* |
|
* |
|
G33 |
* |
|
* |
* |
|
* |
* |
|
* |
|
* |
|
OR1 |
* |
|
* |
* |
|
* |
* |
|
|
* |
* |
|
OR2 |
|
* |
|
* |
|
* |
* |
|
|
* |
* |
|
OR3 |
|
* |
|
|
* |
* |
* |
|
|
* |
* |
|
OR3/B |
|
* |
* |
|
* |
* |
* |
|
|
* |
* |
|
OR1/Z |
* |
|
* |
* |
|
* |
* |
|
|
* |
* |
|
F22 |
* |
|
* |
* |
|
* |
* |
* |
* |
|
|
|
FR1 |
* |
|
* |
* |
|
* |
* |
* |
|
* |
|
|
FR2 |
|
* |
|
* |
|
* |
* |
* |
|
* |
|
|
|
|
技術參數 |
|
主電壓 |
220/240V 50/60Hz |
|
110/120V 50/60Hz |
|
運行溫度 |
-20oC...+60oC |
|
環境濕度 |
最大90%（在40oC） |
|
保護等級 |
IP40 |
|
時間 |
|
預點火時間 |
1.5/10/20/30/40s |
|
安全時間 |
5/10s |
|
火焰失敗后的反映時間 |
<1s |
|
功率 |
18VA |
|
端口額定電流 |
|
預熱器端口 |
6.0A |
|
馬達端口 |
2.0A |
|
點火變壓器端口 |
2.0A |
|
電磁閥1端口 |
0.5A |
|
電磁閥2端口 |
0.5A |
|
報警端口 |
1.0A |
|
內部保險絲 |
6.3A慢速 |
|
外部保險絲 |
4A快速 |
|
重量 |
230g |
|
